Adjustable Universal Proportioning Valve and 2PCS 10 Pound Residual Brake Pressure Check Valve Pack of 2 L4665

A-Team Performance Adjustable Universal Hot Rod Proportioning Valve & 2PCS 10 Pound Residual Brake Pressure Check Valve ABS Street Hot Rod Red for Drum/ Drum Applications

Adjustable proportioning valves are essentially pressure-reducing valves and are often utilized in disc/drum, disc/disc, and drum/drum braking systems. The valve is used to control front-to-rear brake pressure bias and will work for all types of vehicles. Install this valve between the distribution block and the rear flex hose in the front-to-rear rigid brake line. Always use tube wrenches to tighten fittings properly. The final settings of this valve will depend on your particular vehicle and individual preference.

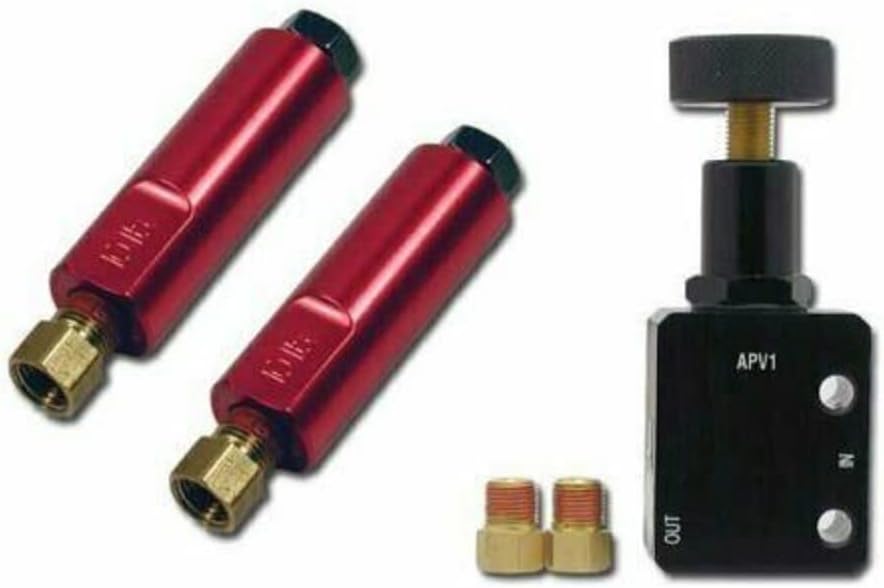

Kit Includes:
(2) 10 lb residual valves

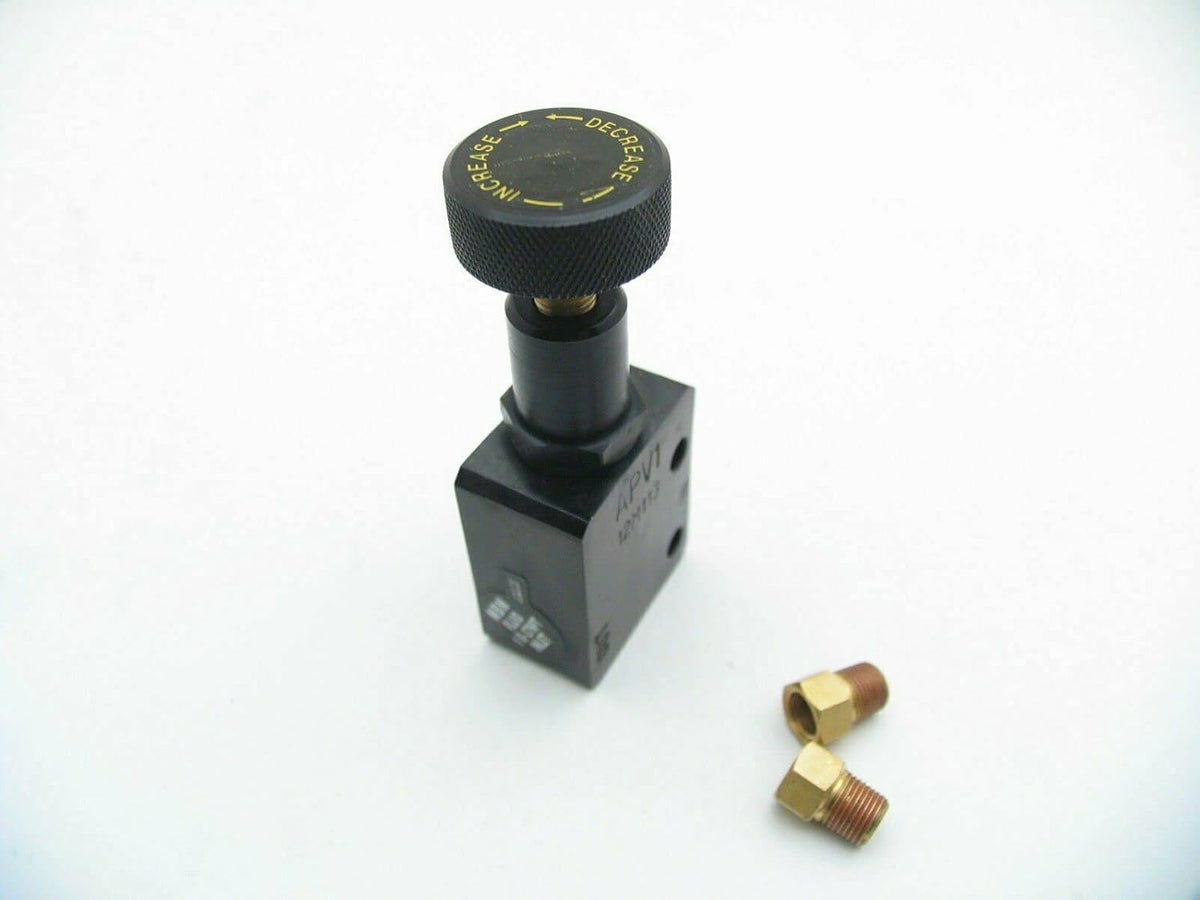

Adjustable Proportioning Valve
Drum/drum application

Adjustable valve has 3/8-24 IFF fittings.

SPECIFICATIONS
“IN” (Stamped on valve) – Rigid brake line from the distribution block to this port. On early cars: the master cylinder rear port to this port.
“OUT” (Stamped on valve) – Rigid brake line to the rear flex hose.
“DECREASE” – Reduces the brake line pressure to the rear brakes.
“INCREASE” – Increases the pressure to the rear brakes.
Maximum pressure regulation: 300 psi. Inlet port of valve: 1/8 – 27 NPT
Standard adaptors: 3/8” – 24 for 3/16” line.
Mounting hole diameter: .250” (two).
Approximately 2 lbs.
